- Scale: 1:16
- Dimensions: 30*23*11.5
- Features: Remote Control
- Is Batteries Included: Yes
- Is Electric: Lithium battery
- Material: Metal,ABS
- Model Number: SG116PRO; SG116MAX
- Power: 4WD
- Remote Control: Yes
- State of Assembly: Ready-to-Go
- Type: Car
Note:
SG116MAX can reach the speed of 80KM/K
1. please test the car in an open place without obstacles and the road surface should be like the highway.
2. For safety reasons, this high-speed car is equipped with a 2S battery, to achieve a top speed of 80KM/H, a 3S battery is required (purchase 3S battery yourself). Be sure to pay attention to safety while driving.
3. Set to maximum speed during testing, run several minutes, and obtain the average maximum speed.
SG116PRO is not suitable for 3S battery. Its motor is carbon brush and some accessories are made of nylon, which can easily damage the vehicle when using 3S battey.

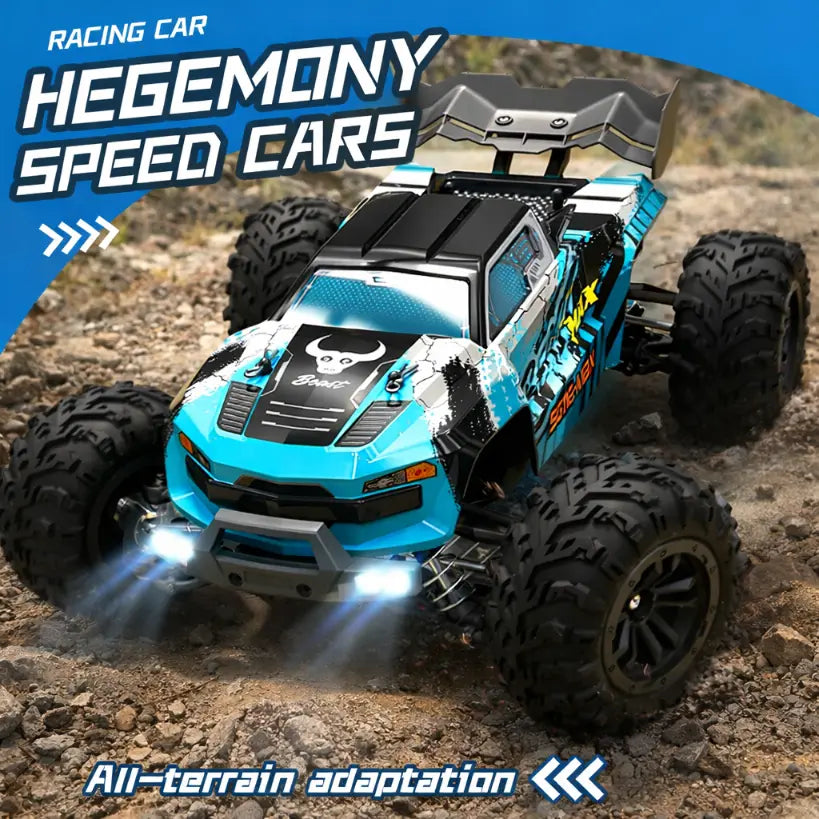

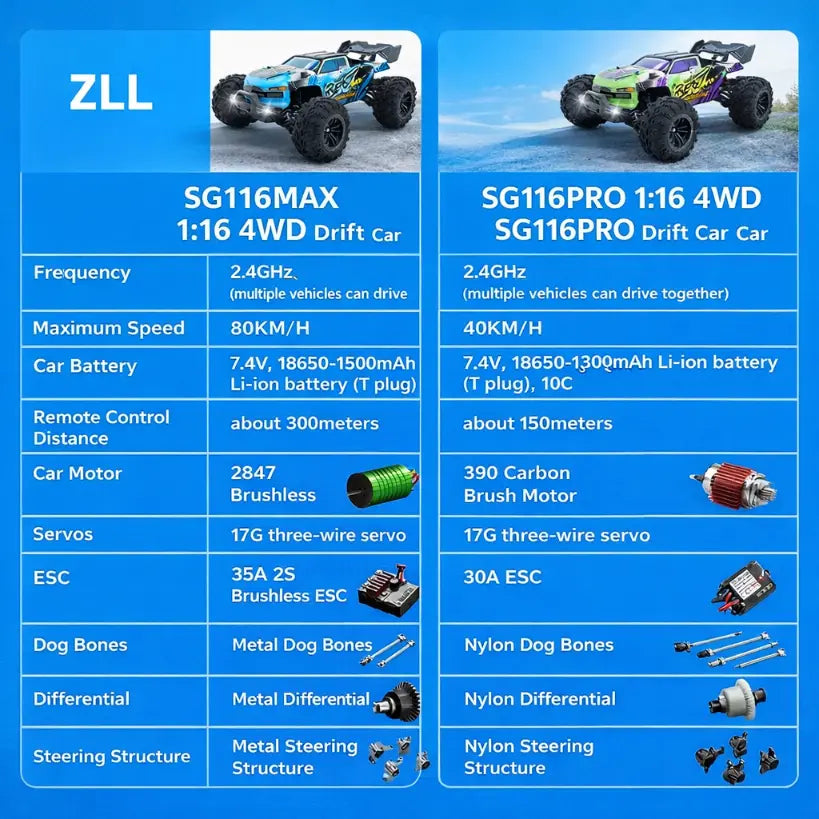

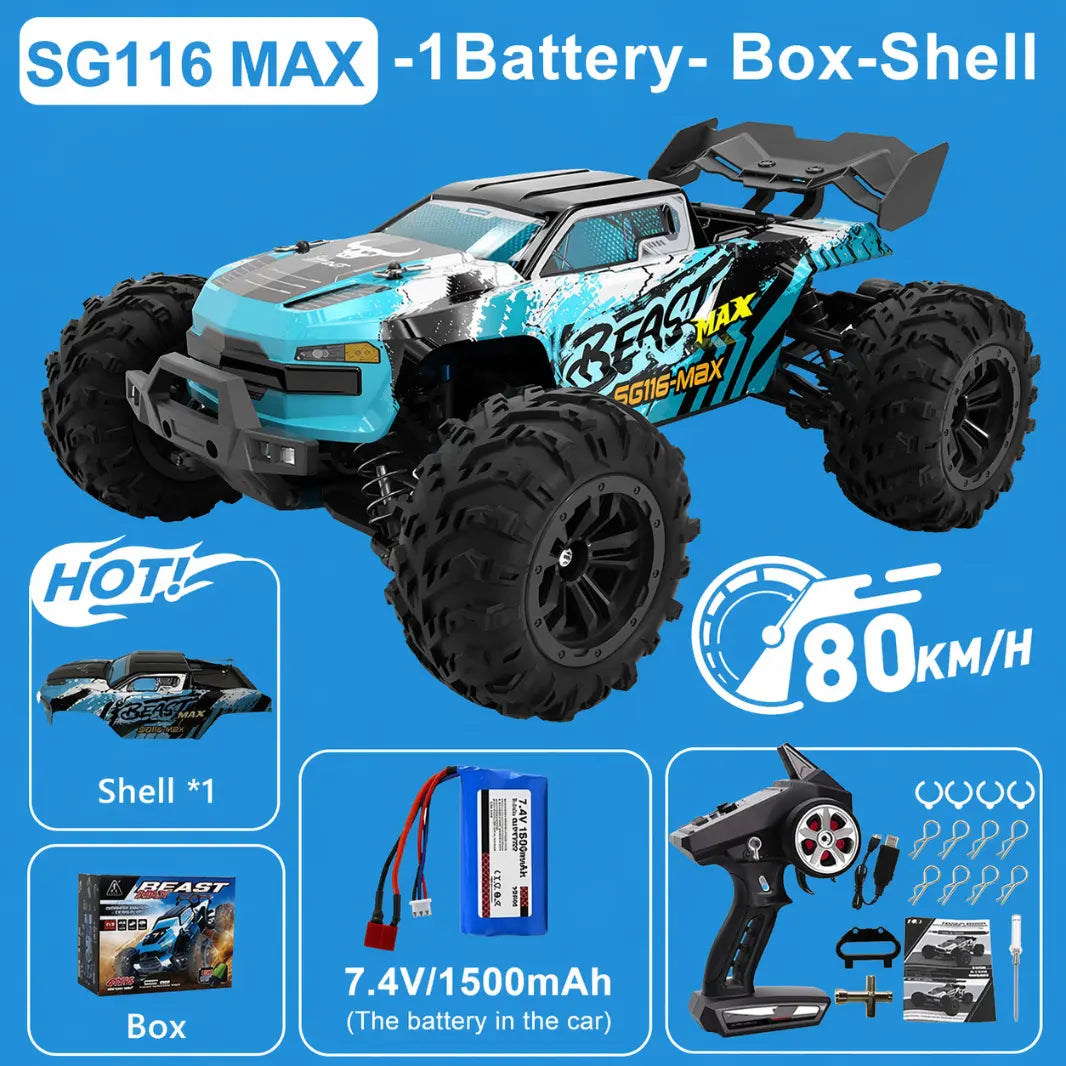

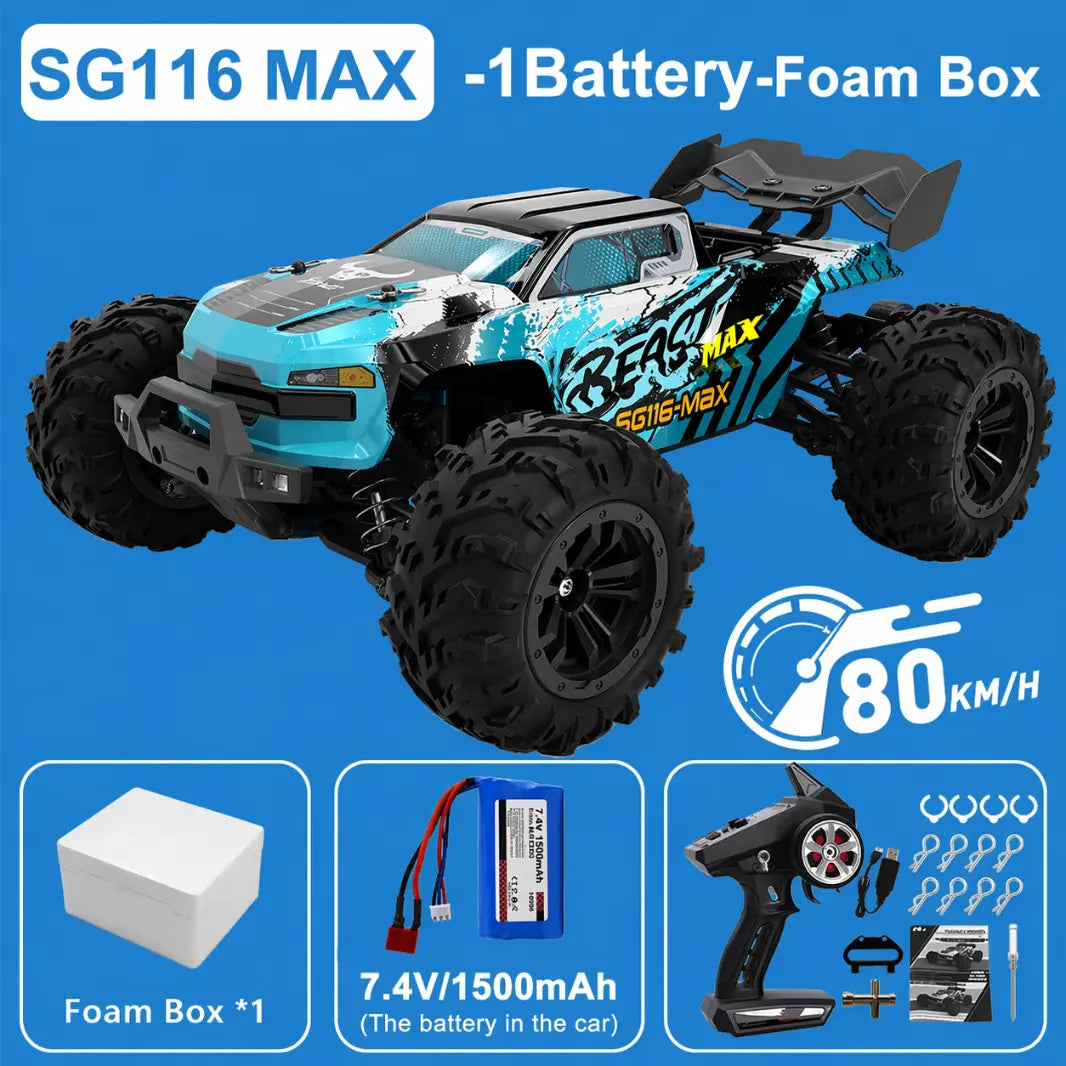

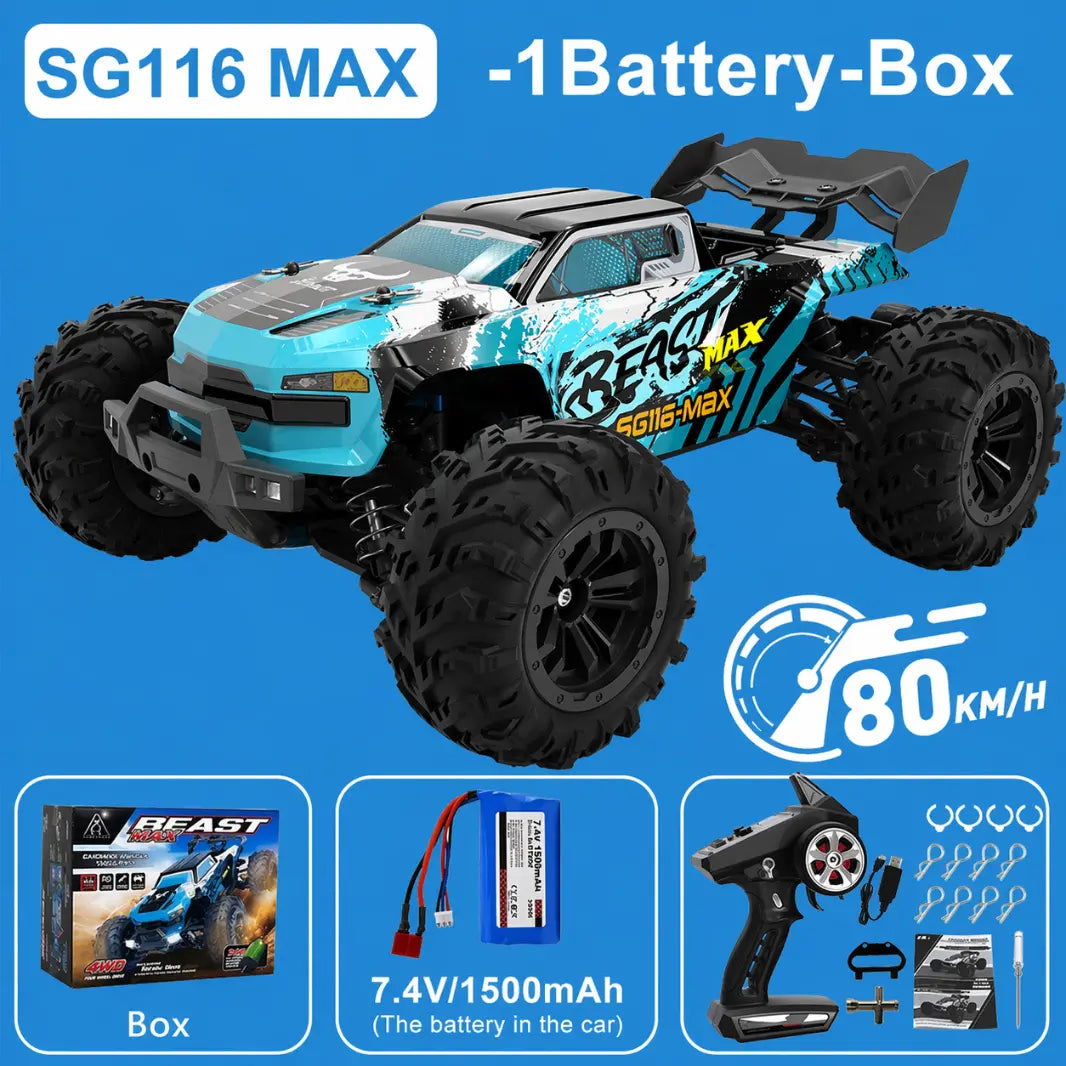

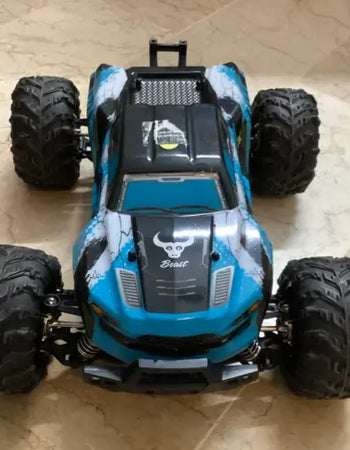

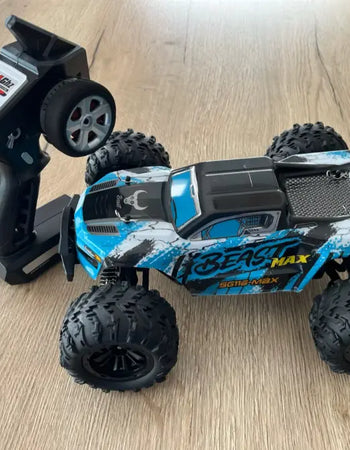

SG116 MAX (Brushless Motor) Recommended!
Scale: 1:16
Color: blue black

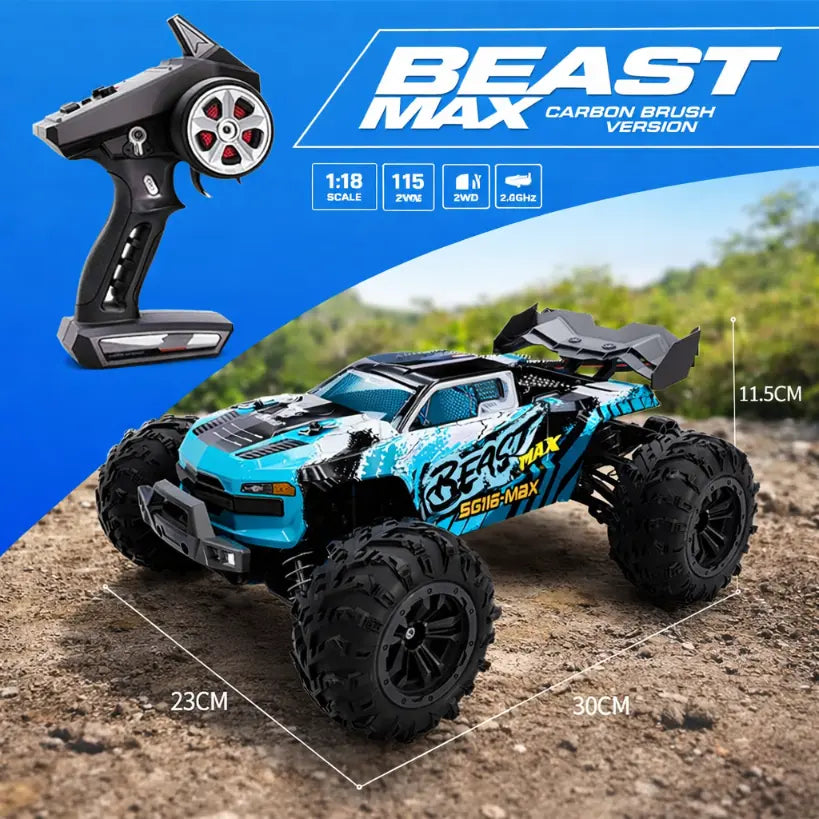

Car size: 30*23*11.5CM
Driving motor: 4000KV 2847 brushless motor
Servos: three-wire 17G digital
Frequency: 2.4G（multiple vehicles can drive together）
Lights: LED headlamps
ESC: 35A 2S splashproof
Maximum speed: 80km/h
Body battery: 18650-7.4V/1500mAh 15C
Working time: about 25 mins
Charging time: 3-3.5 Hours
Remote control distance: about 300m
Remote control battery: 3*AA (prepare by yourself)

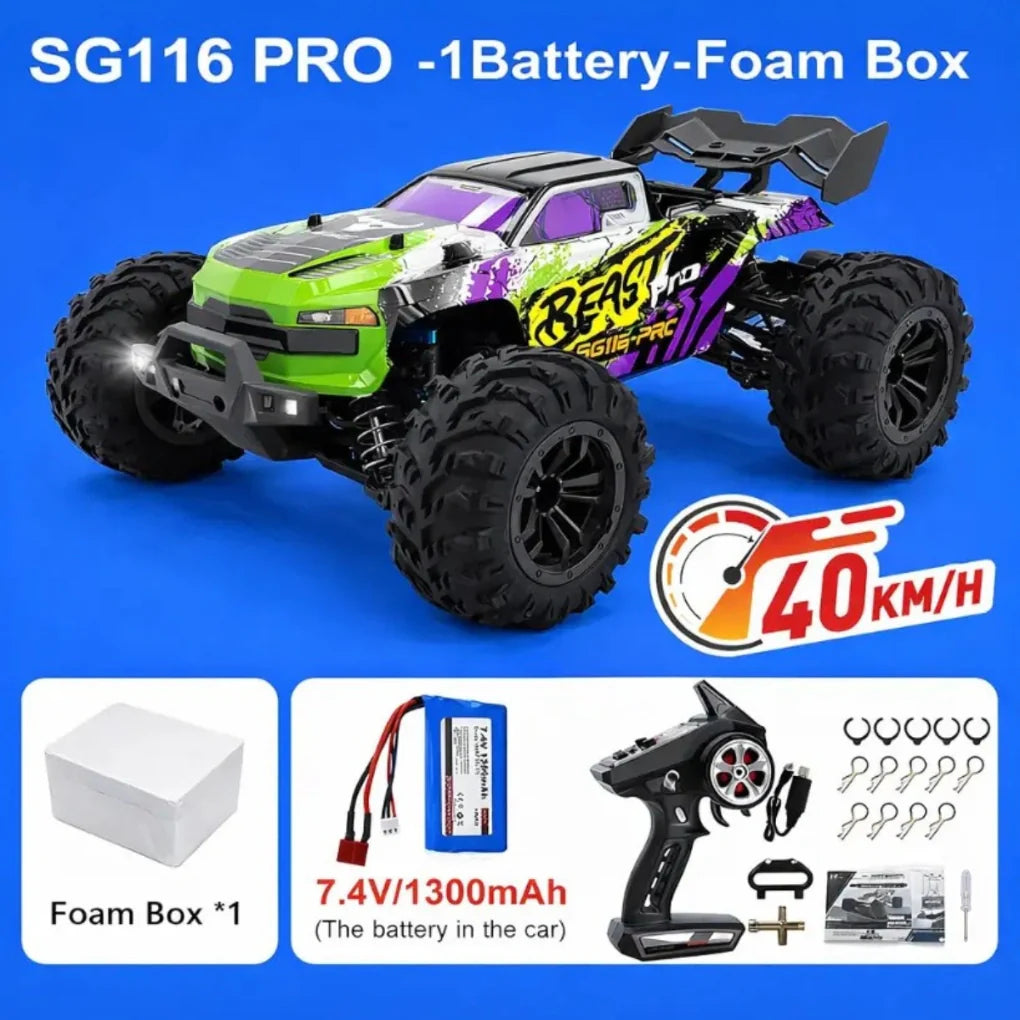

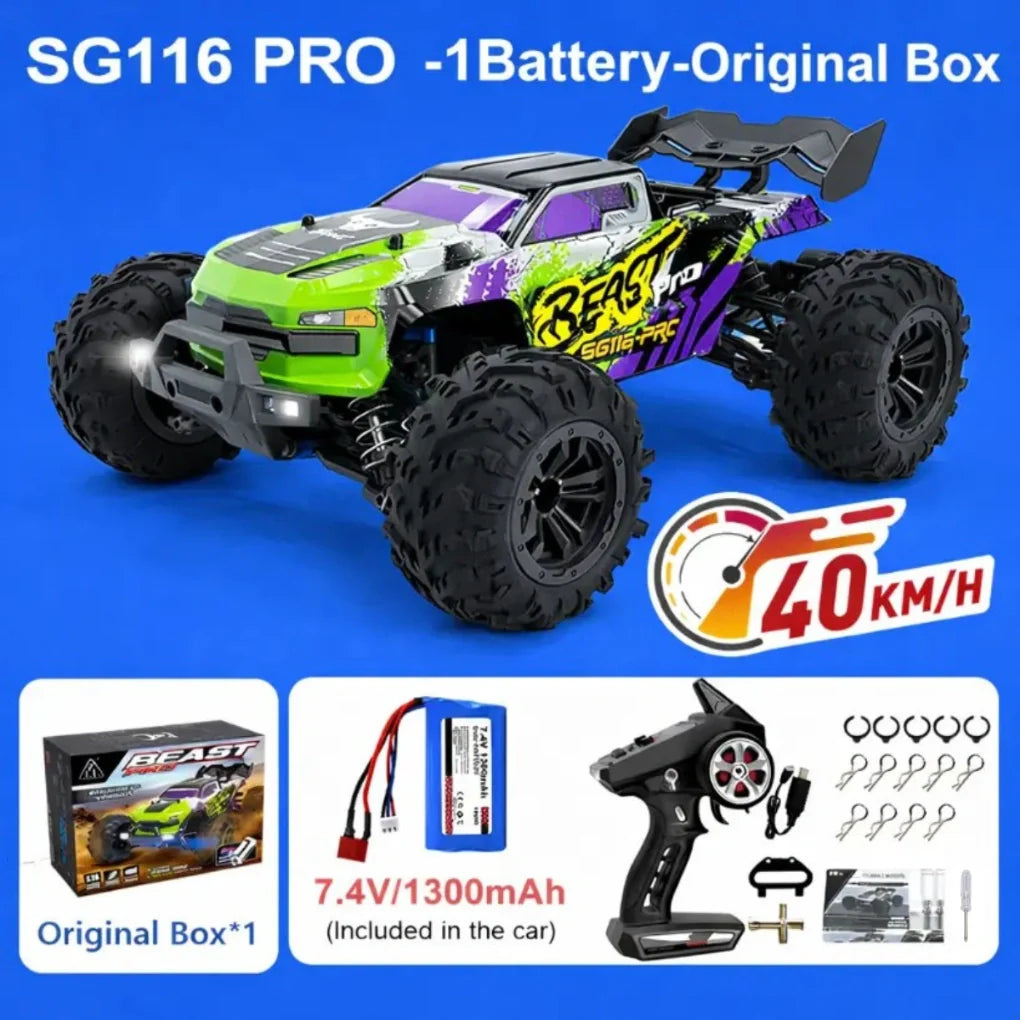

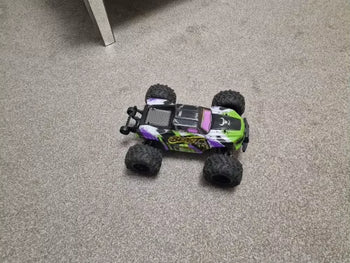

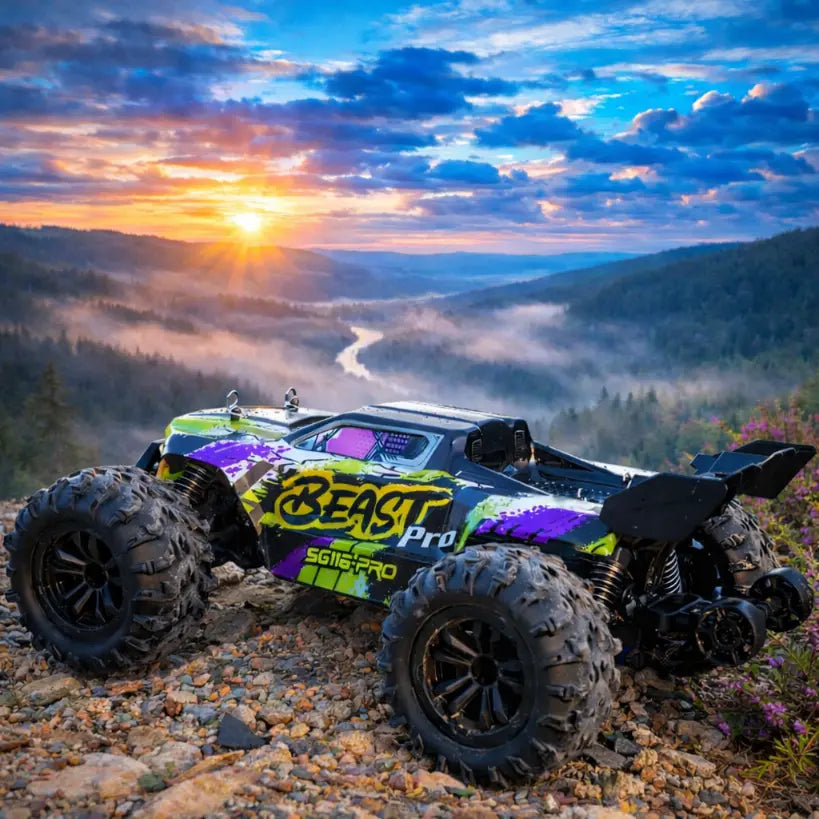

SG116 PRO (Carbon Brush Motor)
Scale: 1:16
Color: purple green
Car size: 30*23*11.5CM
Driving motor: 390 carbon brush strong magnetomotor
Servos: five-wire 17G digital
Frequency: 2.4G（multiple vehicles can drive together）
Lights: LED headlamps
ESC: 30A 2S splashproof
Maximum speed: 40km/h
Body battery: 7.4V/1300mAh 10C
Working time: about 20min
Charging time: 3-3.5 Hours
Remote control distance: about 150m
Remote control Battery: 3*AA (prepare by yourself)
SG116MAX Features:
1. It adopts the simulation structure design, which has the control feeling of a real car, and realizes full-scale continuously variable transmission, high-speed driving, rapid acceleration, deceleration, braking, reversing, turning left, turning right;
2. Applicable venues: flat ground, sandy ground, muddy ground, grassland.
3. Four-wheel drive: front and rear upright spring shock absorption, double wishbone independent suspension system;
4. 2.4G full-scale synchronous remote control system. Full-scale throttle/steering;
5. Metal differential, metal differential cup, powder planetary gear, powder driving gear, powder main gear;
6. Metal CVD front drive shaft, metal rear dog bone, metal wheel cup;
7. Three-line 17G digital steering gear;
8. 7.4V, 18650-1500mAh Li-ion battery (T plug), discharge rate 15C;
9. Adjust the size of the rudder;
10. The whole car adopts 16 ball bearings;
11. Metal second floor, metal front and rear arm yards, metal middle drive shaft;
12. The car shell is made of high toughness explosion-proof PVC car shell;

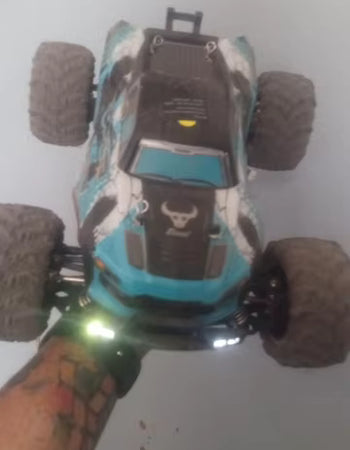

13. Equipped with LED headlights; (three modes: constant light, slow flash, fast flash);
14. Equipped with lifting wheels;
15. Simulation big foot tires, strong grip.
Precautions:
1: Charging protection: constant current and constant voltage balanced charging, protection function for battery overcharge and overcurrent.
2: Motor anti-jamming protection: When overloaded, the motor stops working.
3: High temperature protection: When the working temperature is higher than the setting, the drive control circuit stops working, and resumes working after the temperature drops to a safe value.
4: ESC low-voltage power-off function: when the battery is lower than 6.3-6.4V, it will automatically power off to prevent the battery from being damaged due to over-discharge.
